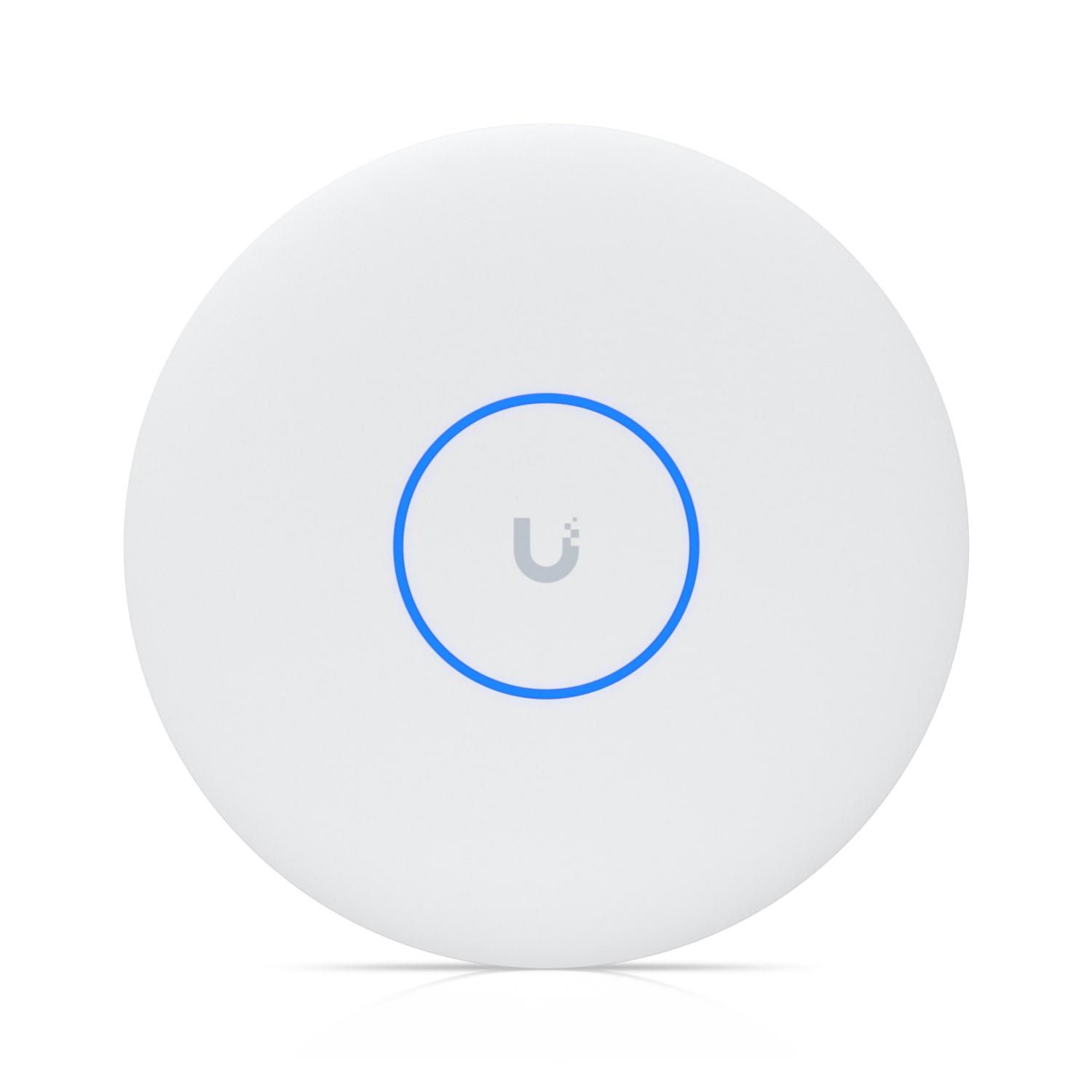

Professional-Grade WiFi 7 Access Point
The U7 Pro XGS delivers cutting-edge WiFi 7 connectivity with 8-stream architecture and dedicated spectral scanning capabilities. This ceiling-mounted access point combines enterprise-class performance with intelligent network management, making it ideal for demanding deployments requiring extensive coverage and device density.
Superior Coverage & Capacity
With 160 m² (1,750 ft²) coverage area and support for 500+ simultaneous devices, this access point handles high-density environments effortlessly. The dual 4x4 MIMO configuration on 5 GHz and 2x2 MIMO on 6 GHz deliver maximum throughput of 8.6 Gbps on 5 GHz and 5.8 Gbps on 6 GHz, while the dedicated spectral scanning radio optimizes channel management without impacting primary WiFi performance.
Enterprise Features & Flexibility
- Multi-Gigabit Uplink: 10/5/2.5/1 GbE port support for future-proof connectivity
- Advanced Roaming: 802.11r fast roaming, 802.11v BSS transition, and 802.11k RRM
- Efficient Deployment: PoE++ powered with included lite mount for flexible ceiling or wall installation
- WiFi 6/5 Compatible: Backward compatible with 802.11ax and 802.11ac standards
Model: U7-Pro-XGS | Standard: WiFi 7 (802.11be) | Spatial Streams: 8 | Power Method: PoE++ | Mounting: Ceiling/Wall
- WiFi 7 with 8-stream architecture for high-performance wireless connectivity
- Dedicated spectral scanning radio for interference detection and optimization
- Multi-gigabit uplink support (10/5/2.5/1 GbE) for fast backhaul
- Up to 5.8 Gbps max data rate on 6 GHz band with 320 MHz bandwidth
- Supports 500+ simultaneous client connections
- 160 m² coverage area (1,750 ft²) in single deployment
- Advanced roaming with 802.11v, 802.11r, and 802.11k support for seamless mobility
- PoE++ powered ceiling or wall mounting for flexible deployment
| Specification | Value |
|---|
| Physical |
| Dimensions | ⌀215 x 32.5 mm (⌀8.5 x 1.3") |
| Mounting | Ceiling, Wall (Lite Mount Included) |
| Wireless Standards |
| WiFi Standard | WiFi 7 (802.11be) |
| Spatial Streams | 8 |
| Coverage & Capacity |
| Coverage Area | 160 m² (1,750 ft²) |
| Max. Client Count | 500+ |
| Performance - MIMO |
| 6 GHz MIMO | 2 x 2 (DL/UL MU-MIMO) |
| 5 GHz MIMO | 4 x 4 (DL/UL MU-MIMO) |
| 2.4 GHz MIMO | 2 x 2 (DL/UL MU-MIMO) |
| Performance - Data Rate |
| 6 GHz Max. Data Rate | 5.8 Gbps (BW320) |
| 5 GHz Max. Data Rate | 8.6 Gbps (BW240) |
| 2.4 GHz Max. Data Rate | 688 Mbps (BW40) |
| Performance - Antenna |
| 6 GHz Antenna Gain | 6 dBi |
| 5 GHz Antenna Gain | 6 dBi |
| 2.4 GHz Antenna Gain | 4 dBi |
| Performance - Transmit Power |
| 6 GHz Max. TX Power | 24 dBm |
| 5 GHz Max. TX Power | 29 dBm |
| 2.4 GHz Max. TX Power | 23 dBm |
| Connectivity |
| Uplink | 10 GbE |
| Power Method | PoE++ |
| Features |
| Max. BSSIDs per Radio | 8 |
| Wireless Meshing | Yes |
| Band Steering | Yes |
| 802.11v BSS Transition Management | Yes |
| 802.11r Fast Roaming | Yes |
| 802.11k Radio Resource Management (RRM) | Yes |
