Ubiquiti U7 Pro XG Review: WiFi 7 With a 10 GbE Uplink
The U7 Pro XG brings WiFi 7, a 10 GbE PoE+ uplink and a silent metal-heatsink design to UniFi’s flagship ceiling AP line. Full specs, an interactive 3D model, comparisons and FAQs.
Ubiquiti U7 Pro XG: WiFi 7 With a 10 GbE Uplink
The UniFi U7 Pro XG is Ubiquiti’s ceiling-mounted flagship WiFi 7 access point built for high-density enterprise deployments. It pairs a 6-stream tri-radio (2.4 / 5 / 6 GHz) with a single 10 GbE uplink and a fanless metal-heatsink chassis borrowed from the Enterprise line. This is the full breakdown — specs, an interactive 3D model, comparisons and FAQs.
Interactive 3D
Spin the U7 Pro XG
Drag to rotate, then tap a feature to fly the camera to it.
Key specifications
| Wi-Fi standard | WiFi 7 (802.11be) |
|---|---|
| Spatial streams | 6-stream tri-radio (2.4 / 5 / 6 GHz) |
| 6 GHz | Up to 5.8 Gbps (320 MHz), 2×2, 24 dBm, 6 dBi |
| 5 GHz | Up to 4.3 Gbps (240 MHz), 5 dBi |
| 2.4 GHz | Up to 688 Mbps, 4 dBi |
| Networking port | 1× 10 GbE RJ45 (1 / 2.5 / 5 / 10G) |
| Power | PoE+ (802.3at), 22W max |
| Coverage | 140 m² (1,500 ft²) |
| Max clients | 300+ |
| Dimensions | Ø206 × 32.5 mm |
| Cooling | Fanless metal-heatsink base |
| Band | Max data rate | Antenna gain |
|---|---|---|
| 2.4 GHz | 688 Mbps | 4 dBi |
| 5 GHz | 4.3 Gbps | 5 dBi |
| 6 GHz | 5.8 Gbps (320 MHz) | 6 dBi |
The 10 GbE port is the headline upgrade — the standard U7 Pro tops out at 2.5 GbE. To actually exceed 2.5 Gbps of aggregate throughput you’ll need a 10G / multi-gig PoE+ switch upstream.
WiFi 7 with a 10GbE uplink and a fanless heatsink design — the first Flagship UniFi APs to borrow the Enterprise thermal solution.
Should you buy it?
Pros
- 10 GbE PoE+ uplink — no longer bottlenecked at 2.5 GbE
- Full WiFi 7: 320 MHz channels and 6 GHz tri-radio
- Fanless metal heatsink runs silent and cool
- Familiar low-profile ceiling design with single-cable PoE+
Cons
- Needs a 10G/multi-gig PoE+ switch to unlock the uplink
- No dedicated spectral-scanning radio (see the XGS)
- 6 GHz is 2×2 rather than 4×4
How it compares
U7 Pro XG vs U7 Pro XGS
| Feature | U7 Pro XG | U7 Pro XGS |
|---|---|---|
| Spatial streams | 6-stream | 8-stream |
| Max uplink | 10 GbE | 10 GbE |
| Dedicated scanning radio | No | Yes |
| Coverage | 140 m² (1,500 ft²) | 160 m² |
| Max clients | 300+ | 500+ |
| Cooling | Fanless heatsink | Fanless heatsink |
See it in action
Ubiquiti’s official introduction to the U7 Pro XG and XGS.
Demo clip placeholder — swap for a hosted product video (MP4).

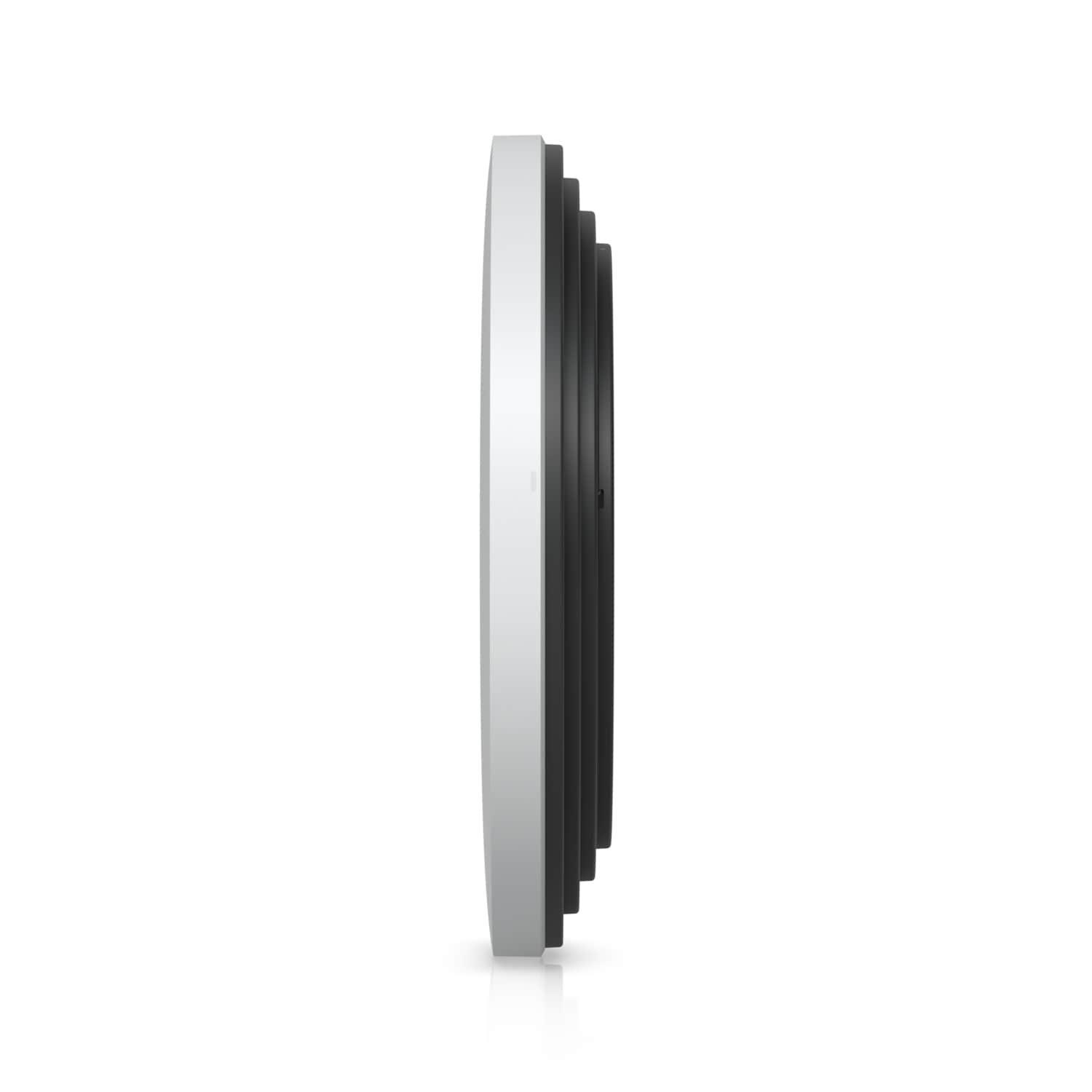

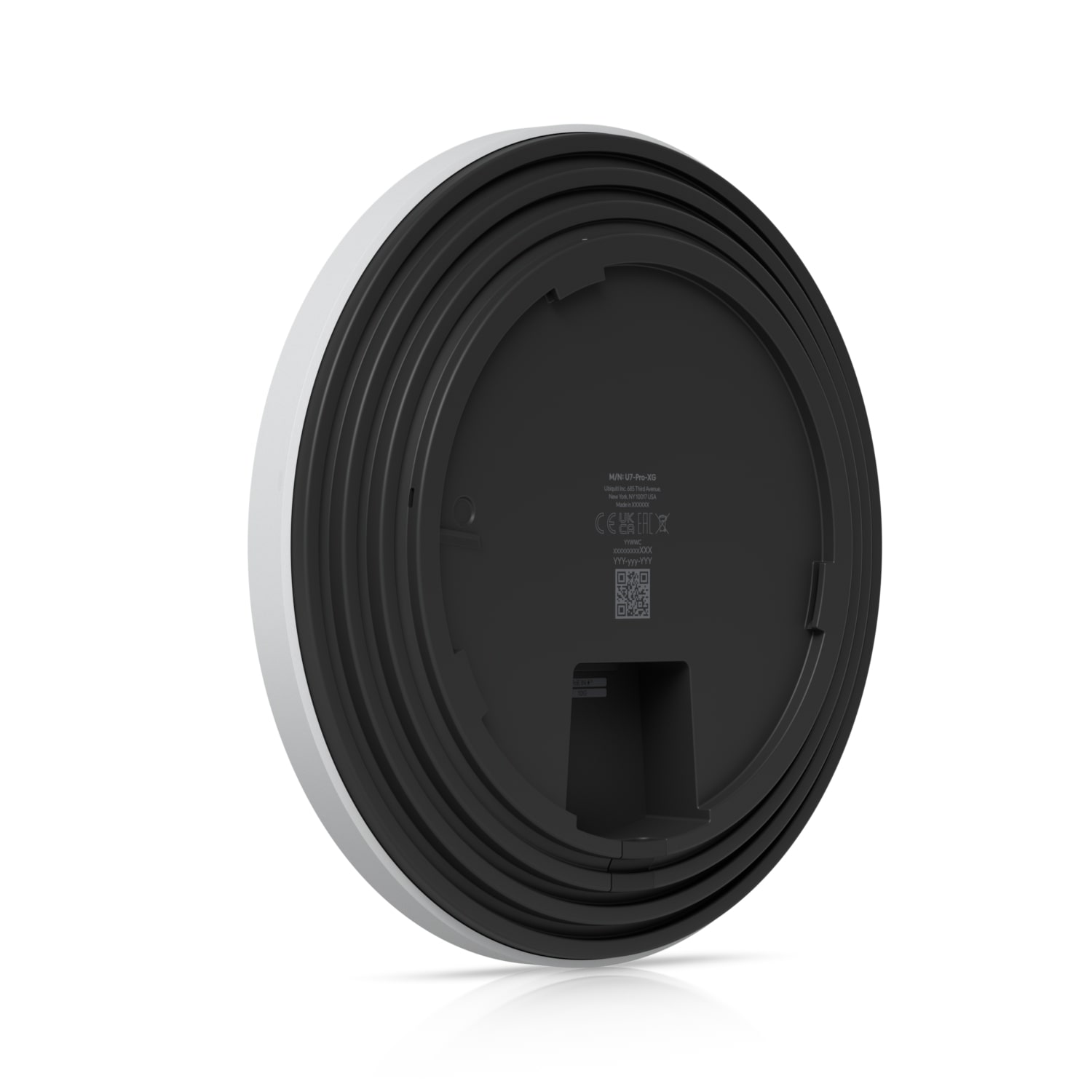

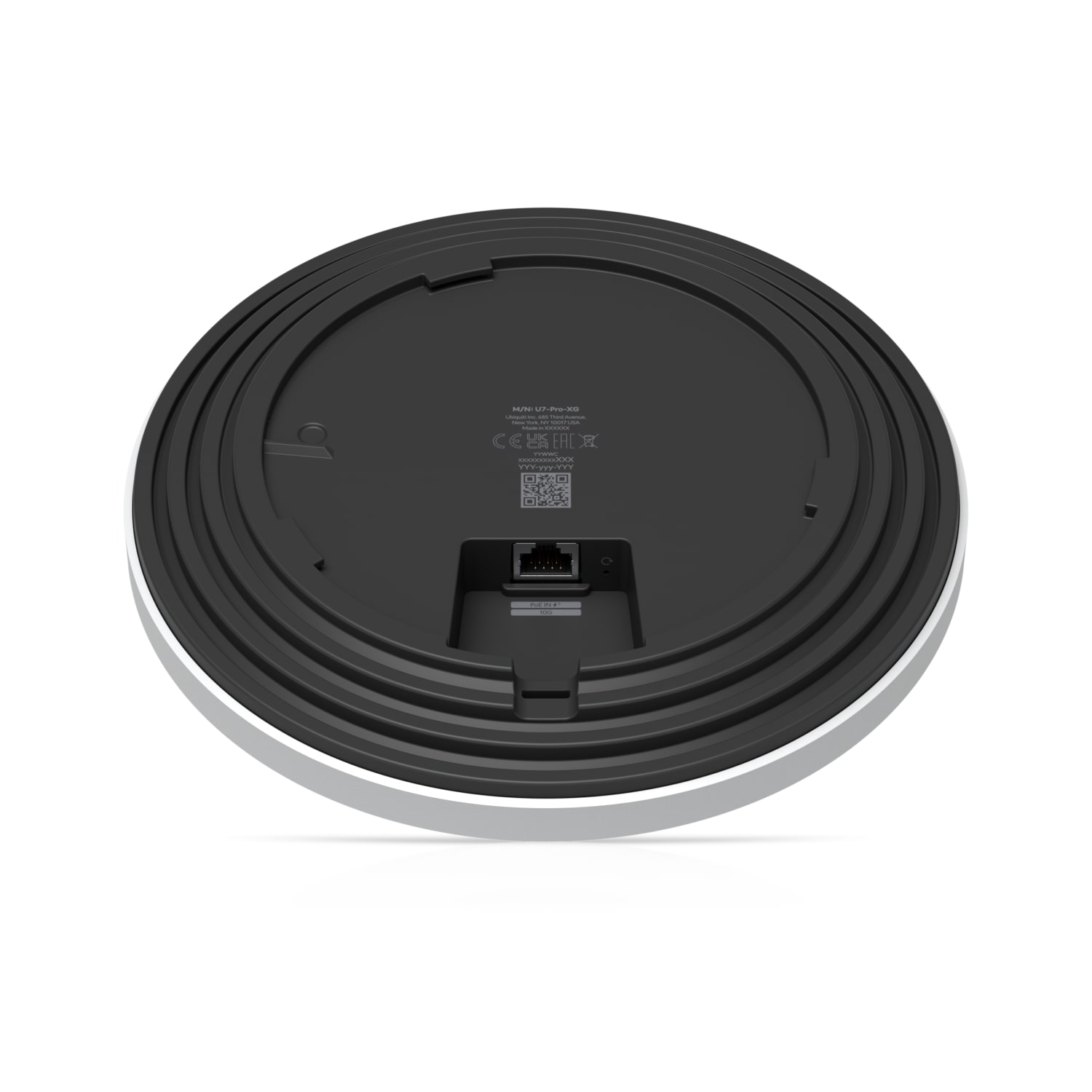

Gallery
The ecosystem
U7 Pro XG Ecosystem
Mounts, PoE++ switching and the gear that pairs with it.
Ubiquiti U7 Pro XG, White,Ceiling-mounted 6-stream WiFi 7 AP Wiith 10/5/2.5/1 GbE Support,140 m² Coverage, 300+ Connect Devices, Powered By PoE+
U7-PRO-XG
Related Models
Other UniFi WiFi 7 access points
Ubiquiti UniFi WiFi 7 AP U7-Pro, Ceiling-mount,AP 6 GHz Support, 2.5 GbE Uplink, 9.3 Gbps Over-the-air Speed, PoE+ Power, 300+ Device
Ubiquiti U7 Pro XGS, Ceiling-mounted 8-stream WiFi 7 AP,Dedicated Spectral Scanning Radio,10/5/2.5/1 GbE Support,160 m² Coverage,500+ Devices
Ubiquiti U7-Pro-Max, Ceiling-mounted WiFi 7 AP, 8 Spatial Streams,6 GHz Support,2.5 GbE Uplink, 500+ Devices,For Large-scale Environments
Ubiquiti U7 Lite,Compact, Ceiling-mounted WiFi 7 AP, 4 Spatial Streams,2.5 GbE Uplink,115 m² Coverage,200+ Connected Devices,Power via POE
Pricing
Quick setup
Adopt the AP from the UniFi Network console, or via SSH for a self-hosted controller:
# Adopt the U7 Pro XG to a self-hosted UniFi Network controller via SSH
ssh ubnt@<ap-ip-address>
set-inform http://<controller-ip>:8080/inform
# Re-run set-inform once it appears as 'Pending Adoption' in the consoleFAQ
Yes — it’s a full WiFi 7 (802.11be) tri-radio AP with 320 MHz channels on 6 GHz.
Any 802.3at PoE+ source will power it, but to use the 10 GbE uplink you need a 10G/multi-gig PoE+ port upstream.
The XGS adds an 8th stream, a dedicated scanning radio and larger coverage. The XG is the 6-stream sibling with the same 10 GbE uplink.
