Price Drop
UBIQUITI

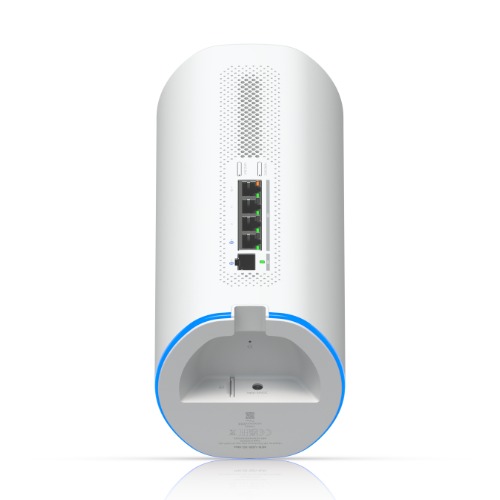

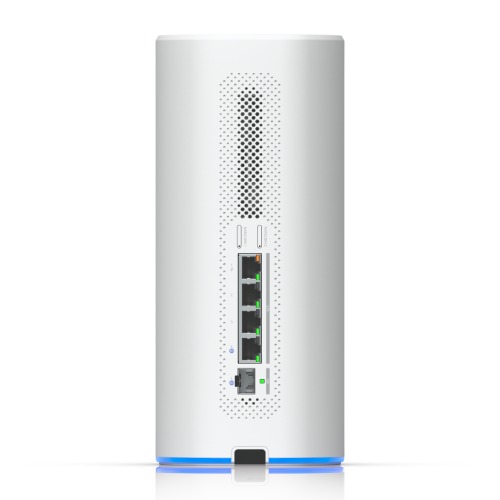

Ubiquiti UDR-5G-Max UniFi Dream Router 5G Max WiFi7 (ETA AUG 26)
Manufacturer Warranty
110.00x110.00x250.00mm
In Stock
Genuine Stock
Sourced from AU distributors
Warranty Backed
Manufacturer warranty
Private Enquiry
Your details stay with us
Fast Quotes
Same-day response
| Retailer | Price |
|---|---|
|
Us
|
Quote |
|
IT Nest
|
$1004.75 |
|
|
$1029.00 |
|
The Tech Geeks
|
$1566.95 |
Lowest
$1004.75
ITNEST
Highest
$1029.00
MWAVE
Average
$1016.88
Price History
Price Drop Alert
We’ll email you when the cheapest competitor price for this listing drops to your target.
Create a free account to set price alerts or sign in
Ubiquiti Dream Router 5G Max
SKU: UDR-5G-Max
Tech Specs: Click Here
Installation Guide: Click Here
Description:
Desktop Cloud Gateway with full-performance 5G up to 3.4 Gbps, WiFi 7, 10G SFP+, 4-port 2.5 GbE switch with (1) PoE port, and SD card storage.
| Router Comparison |
UniFi Express 7 UX7 |
Dream Router 7 UDR7 |
Dream Router 5G Max UDR-5G-Max |
|---|---|---|---|
| Overview | |||
| Dimensions | 117 x 117 x 42.5 mm (4.61 x 4.61 x 1.67") |
⌀110 x 184.1 mm (⌀4.3 x 7.3") |
110 x 110 x 250 mm (4.3 x 4.3 x 9.8") |
| Form Factor | Compact desktop | Compact desktop | Desktop |
| Managed Cameras | (5) HD, (2) 2K, (1) 4K | (5) HD, (2) 2K, (1) 4K | |
| Max. WAN Port Count | 1 | 4 | 4 |
| Default WAN Ports | (1) 10 GbE RJ45 | (1) 10G SFP+ (1) 2.5 GbE RJ45 |
(1) 10G SFP+ (1) 2.5 GbE RJ45 |
| Port Layout | |||
| 2.5 GbE RJ45 | 1 (2.5G/1G/100M/10M) | 4 (1 PoE) (2.5G/1G/100M/10M) |
4 (1 PoE) (2.5G/1G/100M) |
| 10 GbE RJ45 | 1 (10G/5G/2.5G/1G/100M) | ||
| 10G SFP+ | 1 (10G/1G) | 1 (10G/1G) | |
| UniFi Application Suite | |||
| Protect | |||
| Access | |||
| Talk | |||
| Connect | |||
| Networking & WiFi | |||
| Multi-WAN Load Balancing | |||
| MAC Address Table Size | 2,000 | 2,000 | |
| Max. BSSIDs | 4 per Radio (Gateway/AP Mode) | 4 per Radio | 4 per Radio |
| Antenna Gain | |||
| 6 GHz | 6 dBi | 6 dBi | 8 dBi |
| 5 GHz | 7 dBi | 7 dBi | 5 dBi |
| 2.4 GHz | 4 dBi | 5 dBi | 4 dBi |
| Hardware | |||
| NVR Storage | Pre-installed 64GB microSD | Pre-installed 64GB microSD | |
| Expansion Slot | MicroSD Card | MicroSD Card | |
| PoE Budget | 15.4W | 15.4W | |
| Max. PoE Wattage per Port | 15.4W | 15.4W | |
| Voltage Range PoE Mode | 44-57V | 44–57V | |
| Max. Power Consumption | 22W | 26W (Excluding PoE) | 34.5W (Excluding PoE) |
| Power Method | USB type C (5V DC/5A) | Universal AC input, 100–240V AC, 1.5A Max | DC jack (54V DC/1.1A) |
| Power Supply | USB type C (Adapter included) | AC/DC, Internal, 50W | 54V DC/1.1A (Adapter included) |
| Heat Dissipation | 75 BTU/hr | 89 BTU/hr (Excluding PoE) | 115 BTU/hr (Excluding PoE) |
| Weight | 422 g (14.9 oz) | 1.1 kg (2.4 lb) | 1.4 kg (3.1 lb) |
| LCM Display | 0.96" status display | 0.96" status display | 4.7" touchscreen |
| Ambient Operating Temp | -10 to 40° C (14 to 104° F) | -10 to 40° C (14 to 104° F) | 0 to 40° C (32 to 104° F) |
| Certifications | CE, FCC, IC, Anatel: 06656-25-08356 | CE, FCC, IC, Anatel: 05650-25-08356 | FCC, IC, CE, GCF, PTCRB, AT&T, T-Mobile, Wi-Fi Alliance® |
| Overview | |
|---|---|
| Dimensions | 110 x 110 x 250 mm (4.3 x 4.3 x 9.8") |
| Network | Yes |
| Protect | Yes |
| Access | Yes |
| Talk | Yes |
| Connect | Yes |
| Managed UniFi Devices | 30+ |
| Managed Cameras | (5) HD (2) 2K (1) 4K |
| Simultaneous Users Connected | 300+ |
| Max. WAN Port Count | 4 |
| Default WAN Ports | (1) 10G SFP+ (1) 2.5 GbE RJ45 |
| 2.5 GbE RJ45 | 4 (1 PoE) (2.5G/1G/100M) |
| 10G SFP+ | 1 (10G/1G) |
| IDS/IPS Throughput | 2.3 Gbps |
| Form Factor | Desktop |
| Coverage Area | 160 m² (1,750 ft²) |
| Security | |
| Stateful Firewall | Yes |
| Application-Aware Layer 7 Firewall | Yes |
| DPI & Traffic Identification | Yes |
| Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps) | Yes |
| Content Filtering | Yes |
| Intrusion Prevention (IPS/IDS) | Yes |
| Ad Blocking | Yes |
| VPN & SD-WAN | |
| License-Free SD-WAN | Yes |
| Site Magic | Yes |
| IPsec | Yes |
| OpenVPN | Yes |
| Identity Endpoint One-Click VPN | Yes |
| Teleport Zero-Configuration VPN | Yes |
| WireGuard | Yes |
| OpenVPN | Yes |
| L2TP | Yes |
| OpenVPN | Yes |
| WireGuard | Yes |
| Networking | |
| Multi-WAN Load Balancing | Yes |
| OSPF | Yes |
| Multicast DNS (mDNS) | Yes |
| Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT) | Yes |
| Integrated RADIUS Server | Yes |
| RADIUS over TLS (RadSec) | Yes |
| Additional Internet Failover with UniFi LTE Backup | Yes |
| Internet Quality and Outage Reporting | Yes |
| MAC Address Table Size | 2,000 |
| Virtual Network Override | Yes |
| Hardware | |
| NVR Storage | Pre-installed 64 GB microSD for NVR |
| Expansion Slot | MicroSD Card |
| PoE Budget | 15.4W |
| PoE | 15.4W |
| Voltage Range PoE Mode | 44–57V |
| Max. Power Consumption | 34.5W (Excluding PoE output) |
| Power Method | DC jack (54V DC/1.1A) |
| Power Supply | 54V DC/1.1A (Adapter included) |
| Supported Voltage Range | 100–240V AC |
| Heat Dissipation | 115 BTU/hr (Excluding PoE output) |
| Processor | Quad-core ARM® Cortex®-A53 at 1.5 GHz |
| System Memory | 3 GB |
| Weight | 1.4 kg (3.1 lb) |
| Enclosure Material | Polycarbonate |
| LCM Display | 4.7" touchscreen |
| Management | Ethernet Bluetooth |
| ESD/EMP Protection | Air: ± 8kV, contact: ± 4kV |
| Ambient Operating Temperature | 0 to 40° C (32 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| NDAA Compliant | Yes |
| Certifications | FCC, IC, CE, GCF, PTCRB, AT&T, T-Mobile, Wi-Fi Alliance® |
